What is PU Injection Grouting?

PU Injection Grouting, also known as Crack Injection Enforcement, is a process designed to seal cracks and voids in concrete structures by injecting polyurethane (PU) resin into the affected areas. This method is widely used for both structural repairs and waterproofing applications. PU injection is particularly effective for stopping water leakage through cracks in concrete and reinforcing the structure by filling and sealing voids within the concrete matrix.

How Does PU Injection Grouting Work?

PU Injection Grouting works by injecting a polyurethane-based material into cracks or voids under controlled pressure. The material expands as it reacts with water or moisture in the crack, filling the gap and creating a tight seal. Here’s how the process typically works:

• Surface Preparation: Before injection begins, the crack area is cleaned to remove dirt, dust, and loose debris to ensure the injection material adheres properly to the concrete.
• Injection Ports Setup: Small injection ports are installed along the crack or void. These ports serve as the entry points for the injection material.

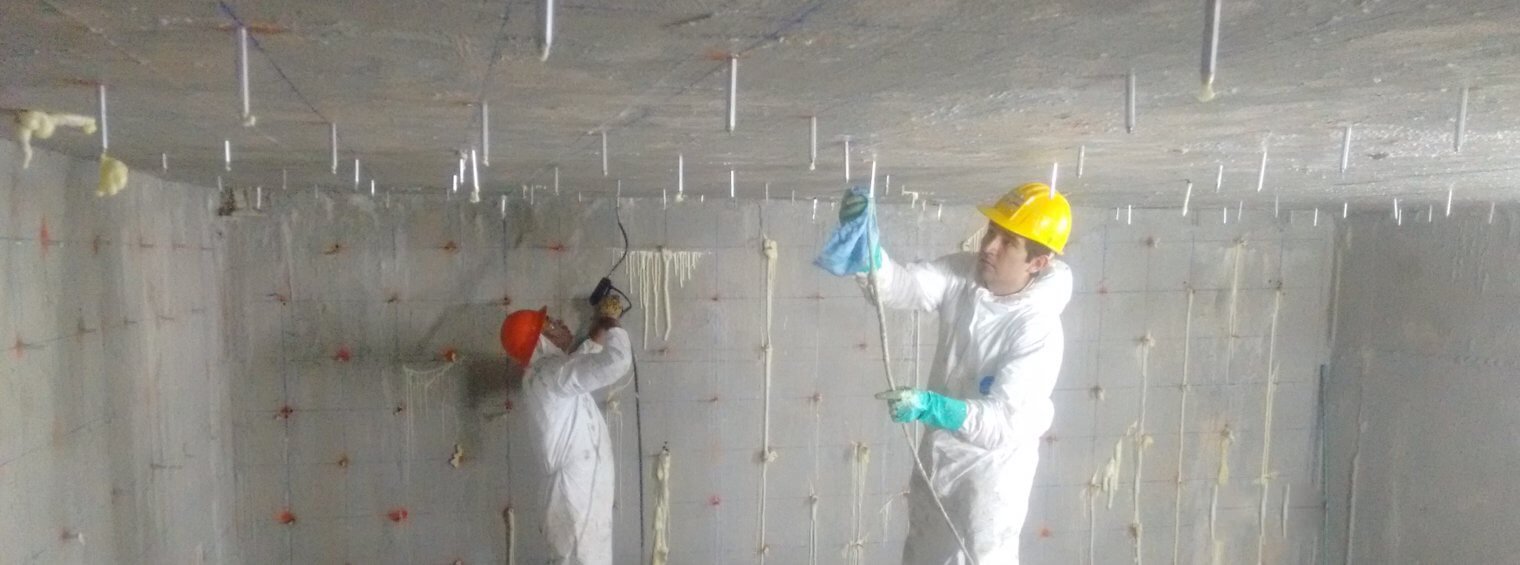

• Injection of PU Resin: Polyurethane resin is injected into the crack through the installed ports. The resin expands upon contact with water, filling the crack completely and sealing the gap.
• Curing and Finishing: The injected resin hardens and cures, creating a strong, durable bond that stops further cracking and prevents water infiltration. Any excess material is removed, and the surface is smoothed for a clean finish.

Benefits of PU Injection Grouting

PU Injection Grouting offers numerous advantages for concrete repair and maintenance:

• Waterproofing: One of the primary benefits of PU injection grouting is its ability to stop water infiltration through cracks in concrete structures. The expanding polyurethane resin effectively seals cracks, preventing water from entering and causing further damage.
• Structural Reinforcement: PU injection not only seals cracks but also strengthens the concrete by filling voids and bonding fractured areas. This process restores the structural integrity of the concrete and prevents future deterioration.
• Quick and Efficient: The injection process is quick, requiring minimal downtime, which allows the structure to be returned to service almost immediately. It’s ideal for situations where time is of the essence.
• Cost-Effective: PU Injection Grouting is a highly cost-effective solution compared to replacing large sections of concrete or undertaking more invasive repair methods.
• Minimal Disruption: The injection process is non-invasive, which means minimal disruption to the surrounding area. This makes it ideal for repairs in occupied or operational spaces.

Applications of PU Injection Grouting

PU Injection Grouting is used in a variety of concrete applications to repair cracks, voids, and leaks. Common applications include:

• Foundation Repairs: Cracks in foundations can be sealed using PU injection grouting to restore the structural integrity and prevent water seepage into the building.
• Basement Waterproofing: Wet basements often suffer from water leaks through cracks in the walls and floors. PU injection grouting is ideal for stopping these leaks and preventing further moisture intrusion.
• Tunnels and Underground Structures: Tunnels, subways, and other underground structures are prone to water leakage. PU injection is used to seal cracks and prevent water from entering these spaces, ensuring their safety and longevity.
• Bridge and Highway Decks: Cracks in bridge decks and roadways can be sealed using PU injection grouting, protecting the structure from further damage caused by water and weathering.
• Industrial Concrete Structures: Industrial facilities with concrete tanks, vats, and other structures may require crack injection to maintain structural integrity and prevent leakage of harmful substances.

Types of Materials Used in PU Injection Grouting

Several types of polyurethane materials are used for injection grouting, each suited for different applications. These materials typically include:

• Flexible Polyurethane: Flexible PU resins are used for cracks and joints that may experience movement. These materials allow for the expansion and contraction of concrete while maintaining a waterproof seal.
• Rigid Polyurethane: Rigid PU resins are used for structural crack repairs where movement is minimal. They form a strong, durable bond and are ideal for stabilizing concrete structures.

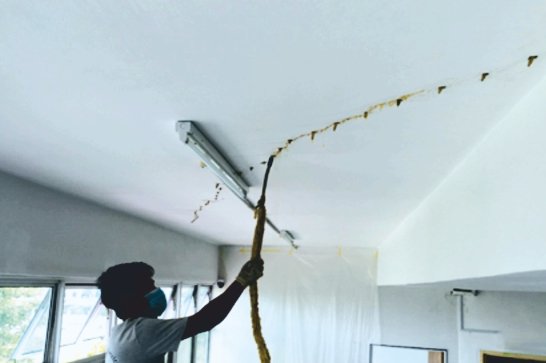

• Foaming Polyurethane: Foaming PU materials expand as they react with moisture in the cracks, filling the voids and creating a waterproof seal. These are ideal for cracks that allow water infiltration.

Why Choose PU Injection Grouting?

PU Injection Grouting is the preferred choice for many concrete repair projects due to its effectiveness, cost-efficiency, and minimal disruption. Here are some reasons to choose PU injection grouting:

• Effective Crack Sealing: PU injection grouting creates a permanent bond that seals cracks and voids, preventing water infiltration and protecting against further damage.
• Cost Savings: PU injection is a more affordable solution compared to replacing sections of concrete or undertaking more invasive methods of repair.
• Restores Structural Integrity: By filling voids and cracks, PU injection reinforces the concrete, restoring its structural integrity and prolonging its lifespan.
• Minimal Disruption: The injection process is fast and minimally invasive, which means there is little disruption to daily activities or surrounding operations.

Conclusion

PU Injection Grouting is a highly effective solution for crack repair, waterproofing, and structural reinforcement in concrete. Whether you're dealing with foundation cracks, basement leaks, or tunnel water seepage, PU injection provides a durable, cost-effective method for restoring and protecting concrete structures. With minimal disruption and long-lasting results, PU Injection Grouting is an ideal choice for a wide range of concrete repair applications.
